| Stc5800-TX |
| Ped, Transceiver, 58 KHz am, g2 plexi |
| The SenTech 58 kHz Acousto-Magnetic Transceiver will protect openings up to 6 feet (1.83cm) using standard AM tags and Labels. Additional receivers and or transceivers may be added to expand coverage. It’s fully programable utilizing advanced circuitry and software. Standard features include internal audio and bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP. |
|
 |

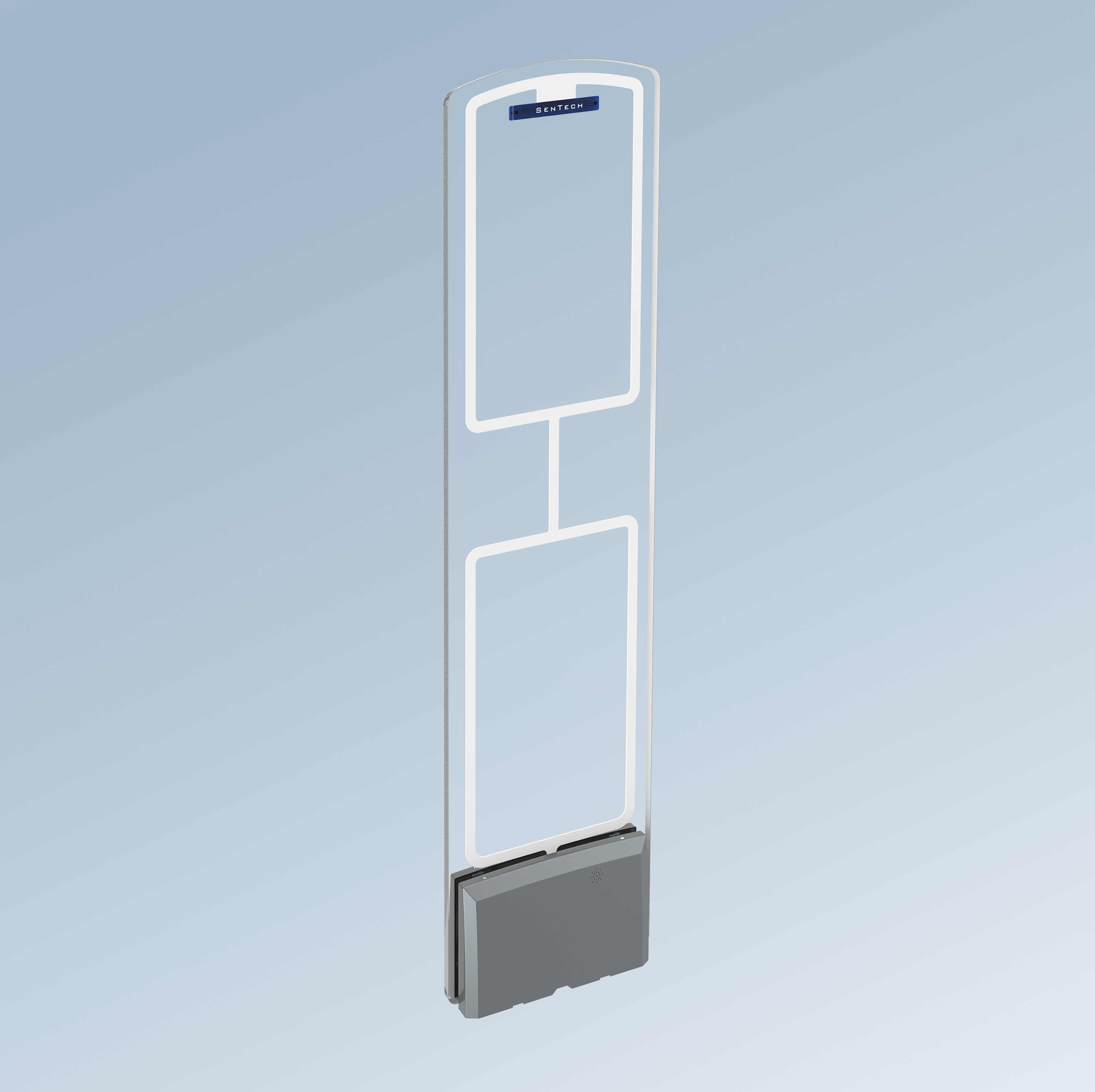

| Stc5800-rv |
| Ped, receiver, 58 KHz am, g2 plexi |
| The SenTech 58 kHz Acousto-Magnetic Receiver Antenna is used in conjunction with a transceiver antenna expanding the detection range of the system allowing it to cover wider openings. It is fully programable utilizing advanced circuitry and software. The features include bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP. |
|
 |

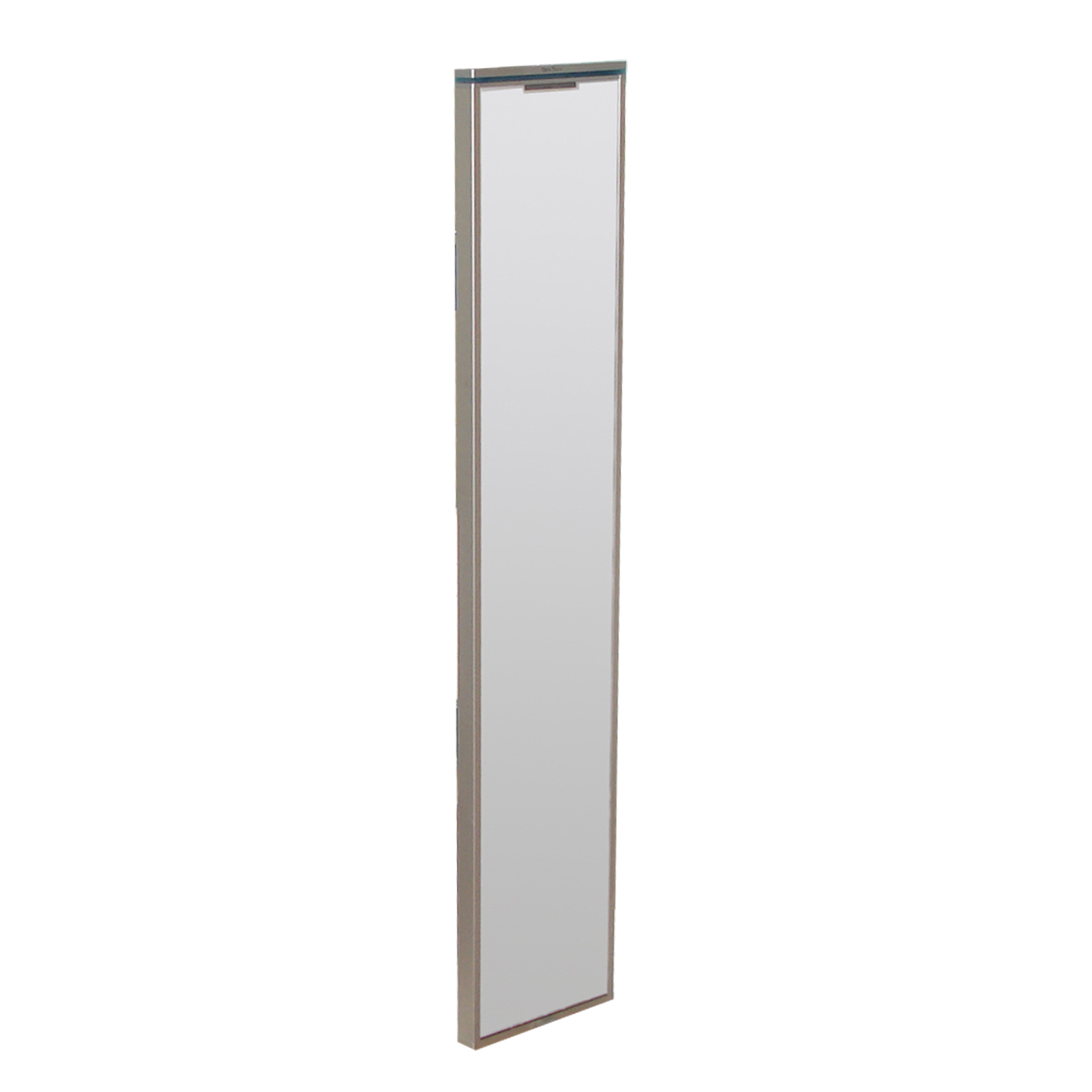

| SC5830-Tx |
| Ped, Transceiver, 58 KHz am, g2 aluminum frame with plexi inserts |
| The SenTech G2 58 kHz Acousto-Magnetic Transceiver will protect openings up to 6 feet (1.83cm) using standard AM tags and Labels. Additional receivers and or transceivers may be added to expand coverage. It’s fully programable utilizing advanced circuitry and software. Standard features include internal audio and bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP |
|
|
| SC5830-rv |
| Ped, Receiver, 58 KHz am, g2 aluminum frame with plexi inserts |
The SenTech 58 kHz Acousto-Magnetic Receiver Antenna is used in conjunction with a transceiver antenna expanding the detection range of the system allowing it to cover wider openings. It is fully programable utilizing advanced circuitry and software. The features include bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP. |
|
|
| SC5820-tx |
| PDoor Antenna, Transceiver, g2, 58 KHz AM |
The SenTech 58 kHz Acousto-Magnetic door frame mounted transceiver antenna will protect openings up to 6 feet (1.83cm) using standard AM tags and Labels. Additional receivers and or transceivers may be added to expand coverage. It’s fully programable utilizing advanced circuitry and software. Standard features include internal audio and bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP. |
|
 |

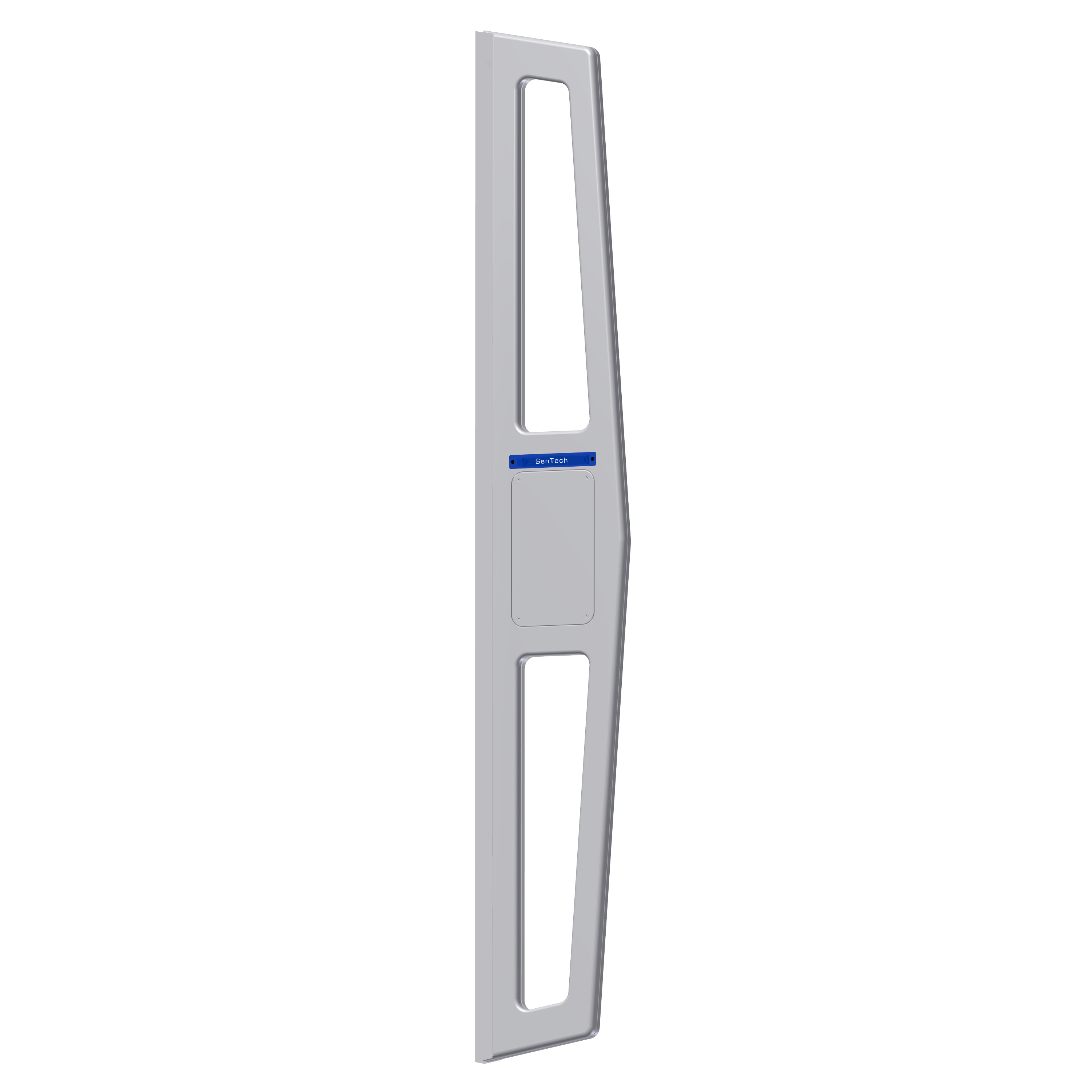

| Stc5820-rv |
| Door Antenna, Receiver, g2, 58 KHz AM |
| The SenTech 58 kHz Acousto-Magnetic door frame mounted receiver antenna is used in conjunction with a transceiver antenna expanding the detection range of the system allowing it to cover wider openings. It is fully programable utilizing advanced circuitry and software. The features include bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP. |
|
 |

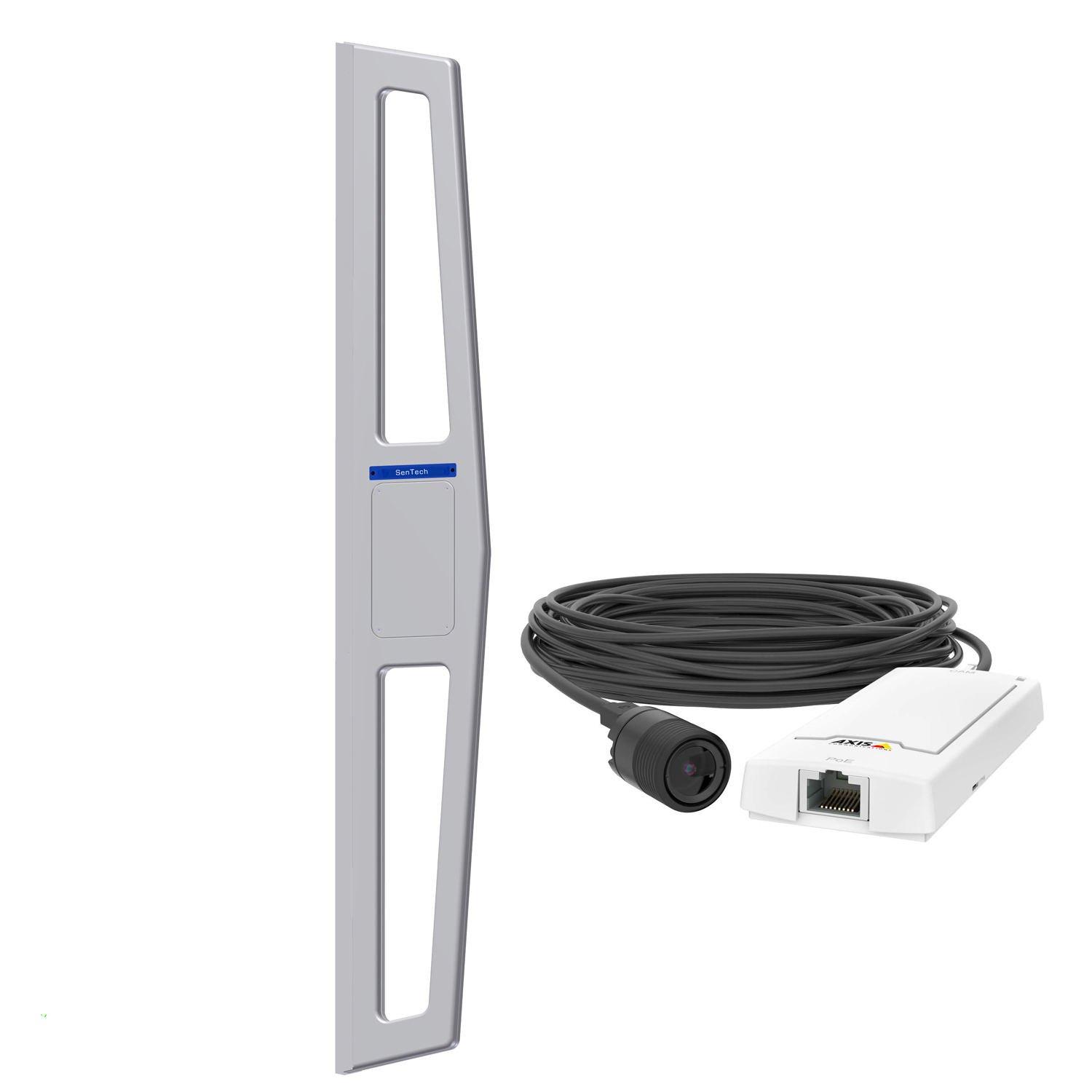

| Stc5820-rvc |
| Door Antenna, Receiver, g2, 58 KHz AM with facial camera |
The SenTech 58 kHz Acousto-Magnetic door frame mounted receiver antenna is used in conjunction with a transceiver antenna expanding the detection range of the system allowing it to cover wider openings. The antenna includes a high quality built in 2 Mega Pixel IP camera by Axis, providing a 111 degree view directly in front of the antenna. It’s fully programable utilizing advanced circuitry and software. The features include bi-directional people counter with analytical data output, remote diagnostics and tuning capability via TCP/IP.
Includes Built in camera compatible with any NVR |
|
 |
| Stc5850-01 |
| Antenna, g2 58 KHz AM, single floor loop |
| The SenTech 58 kHz Acousto-Magnetic In-Floor antenna will protect openings up to 4 feet (1.22m) using standard AM tags and Labels. Additional antennas / power packs may be added to cover wider openings. Fully programable utilizing advanced circuitry and software. Requires a STC5850 Power Pack, detection height up to 5 feet with hard tags and 4 feet with DR labels. Detection may vary greatly depending upon floor construction and other environmental factors. Remote diagnostics and tuning capability via TCP/IP. |
|
 |

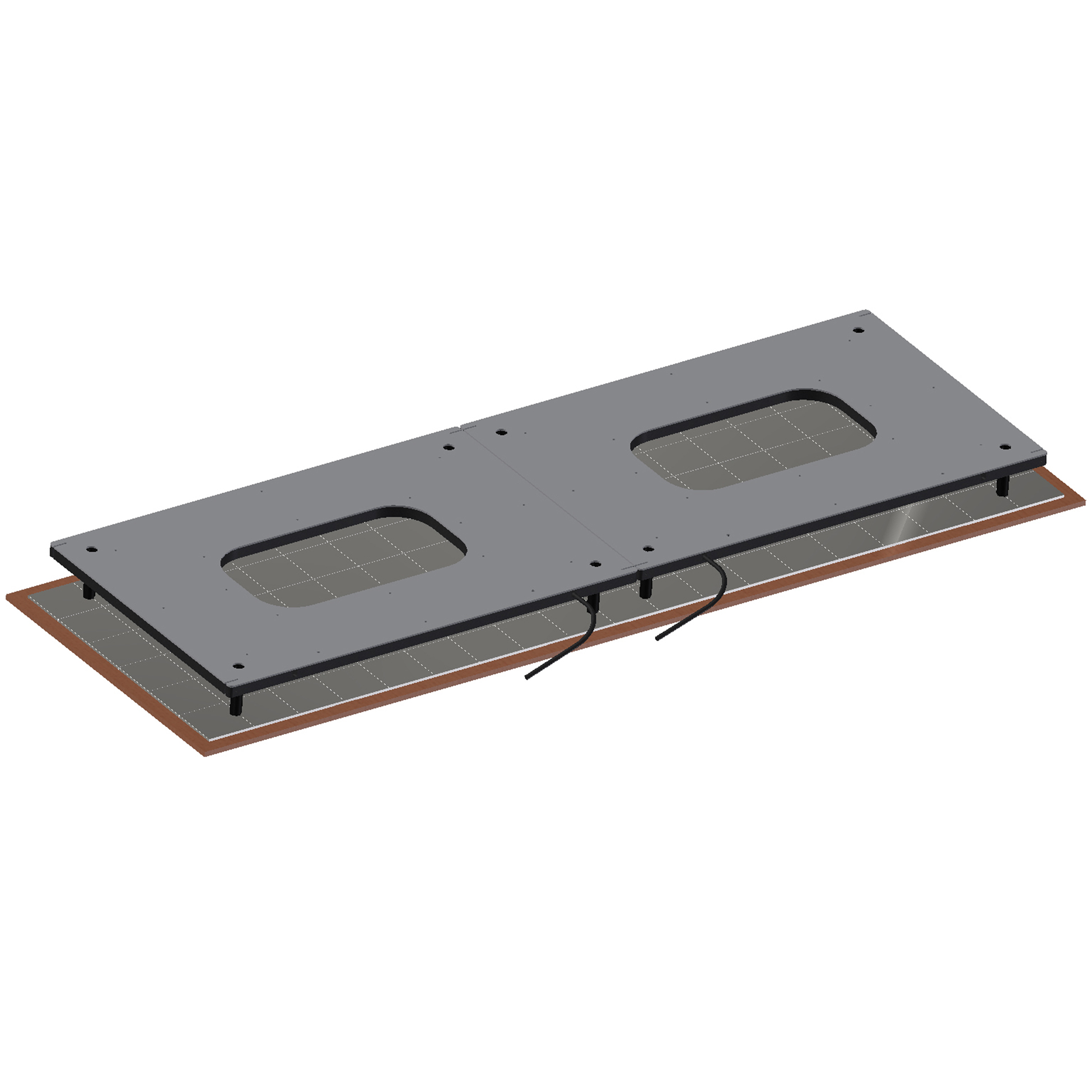

| Stc5850-02 |
| Antenna, g2 58 KHz AM, double floor loop |
| The SenTech 58 kHz Acousto-Magnetic In-Floor antenna will protect openings up to 8 feet (2.44m) using standard AM tags and Labels. Additional antennas / power packs may be added to cover wider openings. Fully programable utilizing advanced circuitry and software. Requires a STC5850 Power Pack, detection height up to 5 feet with hard tags and 4 feet with DR labels. Detection may vary greatly depending upon floor construction and other environmental factors. Remote diagnostics and tuning capability via TCP/IP. |
|
| |
|
| |
|
|
